Category: Open pocket packing machine

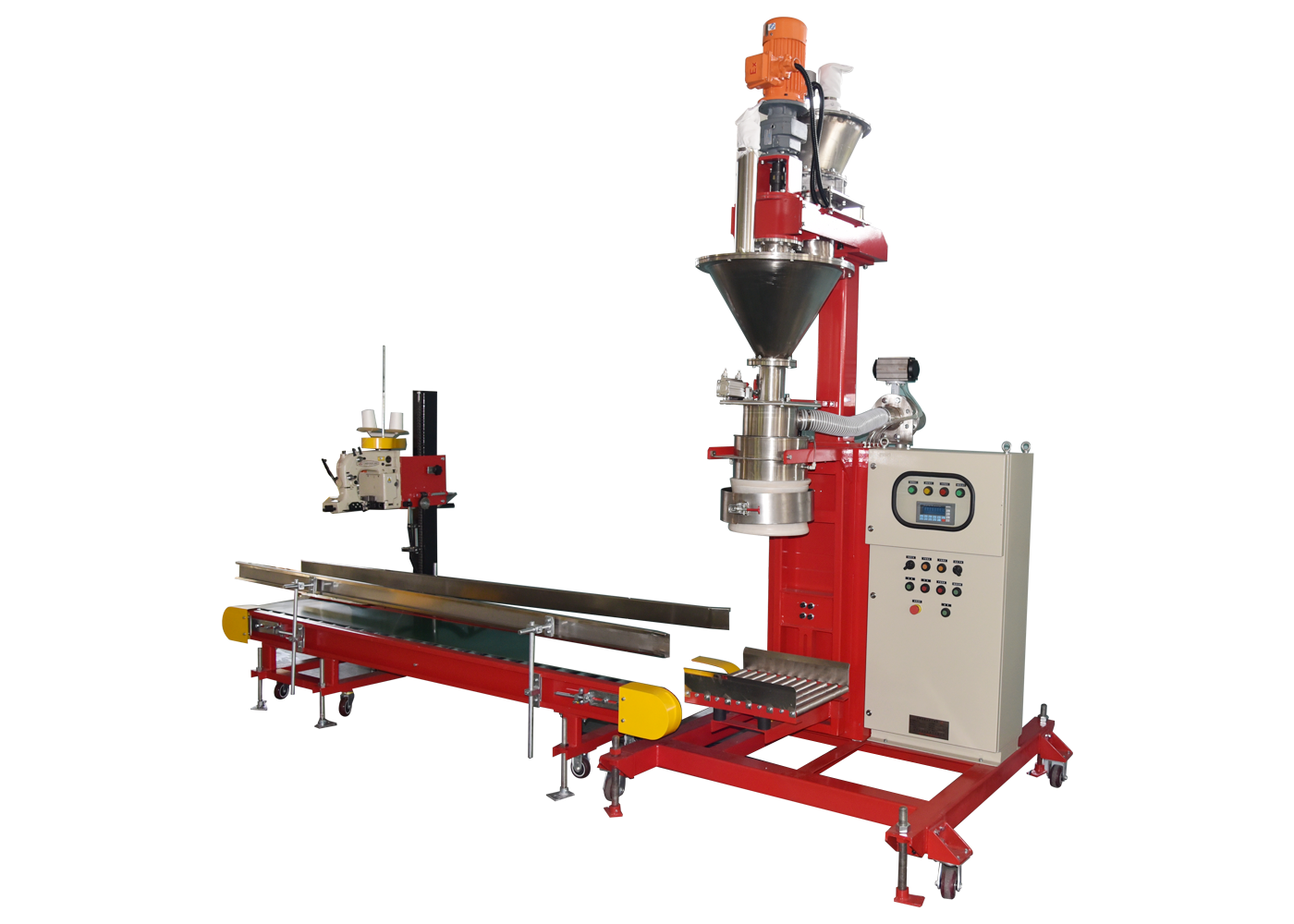

Name: DCS-25FL/DCS-25FLS Powder open pocket packing machine (vertical screw feed type/vertical screw feed pocket lift type)
1. Application Scope:
1) Applicable materials:
A powder that does not stick to walls and is particularly prone to dust.
2) Applicable packaging containers:
Pockets, boxes, buckets.
2. Technical indicators:
Package type number |
DCS-25FL (vertical screw feeding type) |
DCS-25FLS (Vertical screw charging pocket lifting type) |
Packing capacity (bags/hour) | 100－200
| 100-150
|
Package weight range (kg) | 15－50
| 15-50
|
Weighing accuracy
| ±0.2%@2δ
| ±0.2%@2δ
|
3. Features and functions:
1) Gross weight type;
2) The vertical screw feeding mechanism, the discharge port of the feeding mechanism is close to the mouth of the packaging bag, so the drop of the material is small when the material is added to the pocket, and the dust generated is small;
3) The discharge port of the feeding screw has a cut-off door, which can prevent the drip of the material after the feeding is finished;
4) The feeding speed is controlled by the inverter, and the feeding process is composed of fast feeding and slow feeding;
5) The bag clamping mechanism of the packaging machine can be lifted, so that it can adapt to the pockets of different heights, and can realize the bottom of the bag, so that the dust generated during packaging is minimized, and the material loss caused by dust removal is reduced to the greatest extent.
6) The weighing is controlled by the weighing sensor and digital weighing control instrument, which has high weighing accuracy and is easy to use;
7) High degree of automation, packaging machine automatic peeling, automatic feeding, automatic weighing, easy to operate;
8) With a unique negative deviation compensation device, when the accuracy of the packaging is negative deviation, the packaging machine can automatically compensate for the negative deviation of this package until the packaging error is positive deviation.
